Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve

  • 1
  • 2
  • 3

Brand Name : SAMSON

Model Number : 3767

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50

Delivery Time : 4-10 weeks

Packaging Details : Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)

Product name : samson control valve with positioner 3766,3767 valve positioner

Brand : SAMSON

Model : 3767

Matrial : Alloy/Steel

Torque : 34~13500Nm

Voltage : AC / DC 220V, AC 380V,etc

Intrinsic safety : ATEX, STCC, GOST

Supply air : IP66

Weight : Approx. 0.5 kg

Application : Gas, Oil Industry

Contact Now

Products Description

samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve

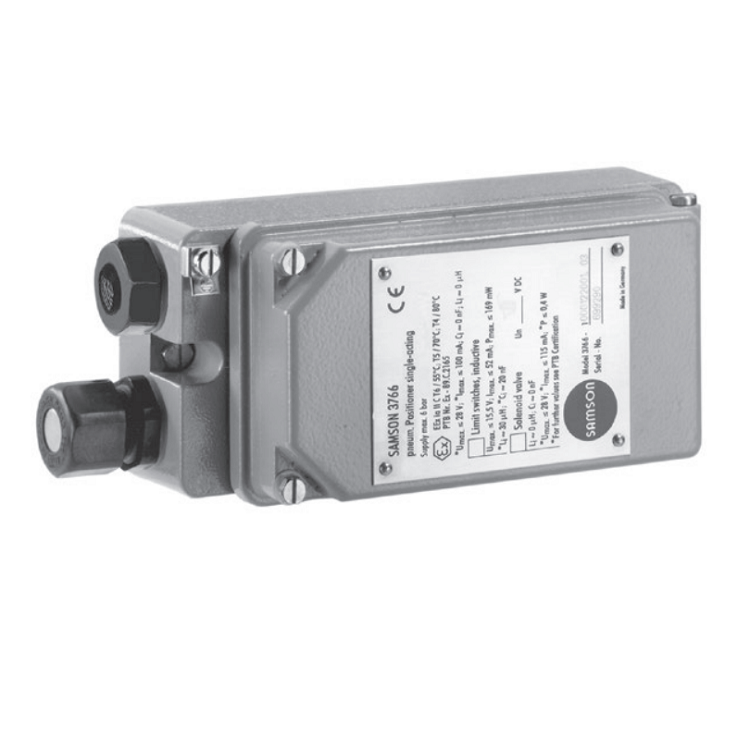

The positioners ensure a predetermined assignment of the valve position (controlled variable x) to the input signal (referencevariable w).
They compare the input signal received from a control system to the travel of the control valve and issue a
corresponding output signal pressure pst (output variable y). A reversing amplifier for double-acting actuators produces two opposed signal pressures. Special features Any mounting position possible, suitable for normal or splitrange operation, excellent dynamic response, negligibly small influence of supply air, adjustable proportional band (P band), adjustable air output capacity, low air supply consumption, very insensitive to mechanical vibrations, lowmaintenance compact design. • Versions for use in hazardous areas in type of protection intrinsic safety II 2G Ex ia IIC T6 or II 3G Ex nA II T6 for Zone 2. • Type of protection "Flameproof enclosure" Ex d with Type 3766 Positioner and Type 6116 i/p Converter (Fig. 2) • Direct attachment to Type 3277 Actuator (Fig. 3) • Attachment to actuators according to IEC 60534-6. • Attachment to rotary actuators according to VDI/ VDE 3845
Details Images
Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve

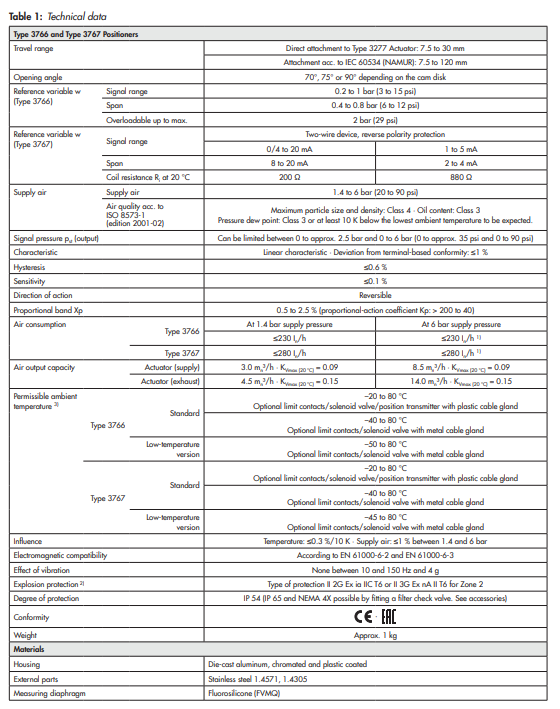

Product Paramenters
Samson Control Valve 3766 3767 Positioner 3241/3375 Electric Control Valve
Name
samson control valve with positioner 3766,3767 valve positioner with 32413375 Electric Control Valve
Brand
Samson
Model
3677/3676
working range
-10 to +114 %
Voltage
24VDC
Application
Gas& Oil industry
Connection
SOLENOID
size
1/4 NPT
