Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner

Brand Name : Azbil

Model Number : Azbil Avp100

MOQ : 999 Set/Sets

Price : Negotiation

Supply Ability : 999 Set/Sets per Year

Packaging Details : Packing type: cardboard box/non-fumigation wooden box

Application : General

Material : Stainless Steel, Aluminum

Temperature of Media : Medium Temperature

Pressure : 0-10 bar

Power : Pneumatic

Media : Gas

Port Size : Standard

Structure : Pressure Reducing

Standard or Nonstandard : Standard

Port : Main Ports in Hongko

Ambient Temperature : -20 to 80°C

Control Mode : Position, Pressure, Flow

Flow Rate : 0-100 m3/h

Humidity : 0-95% RH

Input Signal : 3-15 PSI

Mounting : Direct, Bracket, Rack

Output Signal : 3-15 PSI

Power Supply : 110/220 VAC

Product Name : Control Valve Positioner

Protection Level : IP65

Type : Pneumatic

Valve Type : Globe, Angle, Butterfly, Ball

Contact Now

19 可添加模块
Product Description

Chinese control valve with pneumatic valve positioner High Quality Azbil Smart Valve Positioners Azbil Avp100 With Good Price

Smart Valve Postioner 100 Series Model AVP100/102 aremicroprocessor based current-to-pneumatic valve position-ers. The 100 Series receives a DC current signal from controldevices and controls the openings of valves. In additionto this basic function, the 100 Series has communicationcapabilities, automatic configuration program, and self-diagnosticsfunctions that increase productivity and efficiency ofplant operation.

Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner

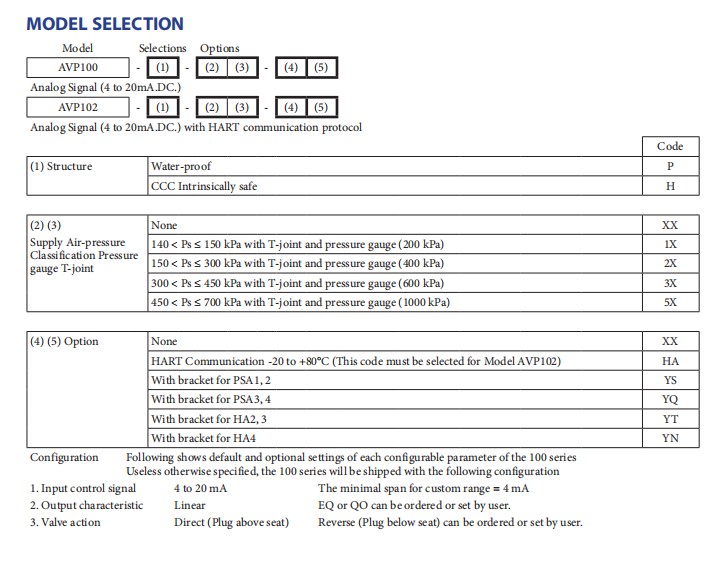

Specifications
Reference variable
4 to 20 mA
Trave
5 to 50 mm
Opening angles
24 to 100°
Operating Temperature
Standard Temperature
Explosion protection
Intrinsic safety: ATEX, STCC,
Application
Gas& Oil industry

Special features

Benchmark control performance on rotary andlinear walves
Reliable and robust design
Easy commissioning and operation
Safety; IEC 61508 compliant up to and including SIL 2 by TuV
Language selection: English, German and French
Local i' remote operation Expandable architecture
Advanced device diagnostics includingSelf-diagnostics
Online diagnostics Performance diagnostics Communication diagnostics
Extended off-line tests
Performance view
Online Valve Signature
Options Interchangeable communication options:HART 6 or 7(H)
FOUNDATION feldbus
Profibus PA
Limit switches Position transmitter (in HART only)Full stainless steel enclosure
Exhaust adapter Remote mounting
Arctic version (up to -53 C / -64 F)
Total cost of ownership
Low energyand air consumption
Future proof design allows further options at a reduced cost
Optimized spares program minimizes spare part inventory
Retro-fit to existing installations (Neles or 3rd party valves)
Minimized process variability
Linearisation of the valve flow characteristics
Excellent dynamic and static control performance Fast response to control signal change Accurate
internal measurements

Detailed Images
Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner
Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner
Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner
Packing & Delivery
Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner
Our Service
Control Valve With Pneumatic Actuator And Azbil AVP100 AVP102 Pneumatic Smart Valve Positioner

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
